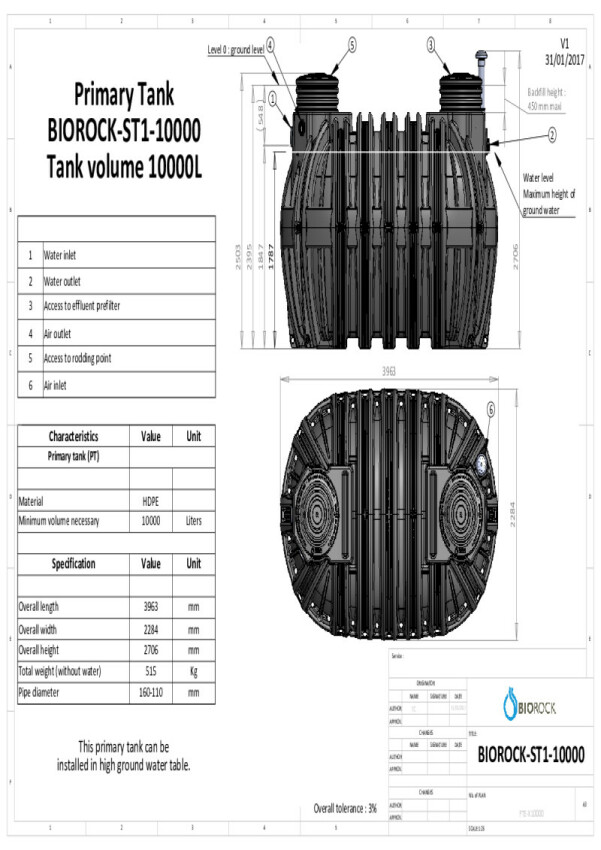

The ST-10000 Primary Tank has a rectangular base and an oval top part.
The tank has 1x compartment. The volume and overall capacity can be increased when installing the units in series or in parallel.
The BIOROCK-ST-10000 Primary Tank has integrated slots on the base of the tank to enable safe movement by forklift vehicles. Lifting eyes are situated around the tank, enabling lifting for ease of installation.
Rings are positioned at the base of the tank allowing the anchoring using straps or anchors when installed in wet ground conditions.
The ST-10000 Primary Tank has an integrated extension set.
All BIOROCK Primary tanks are standard equipped with an effluent filter in the water outlet pipe. For specifications, see "Accessories" (Effluent Filter).
Certification: EN12566-1, EN 12566-3+22
| spec | value |
|---|---|
| Length | 3963 mm |
| Width | 2284 mm |
| Height | 2395 mm |
| Weight | 515 kg |
| Volume | 10000 litres |
